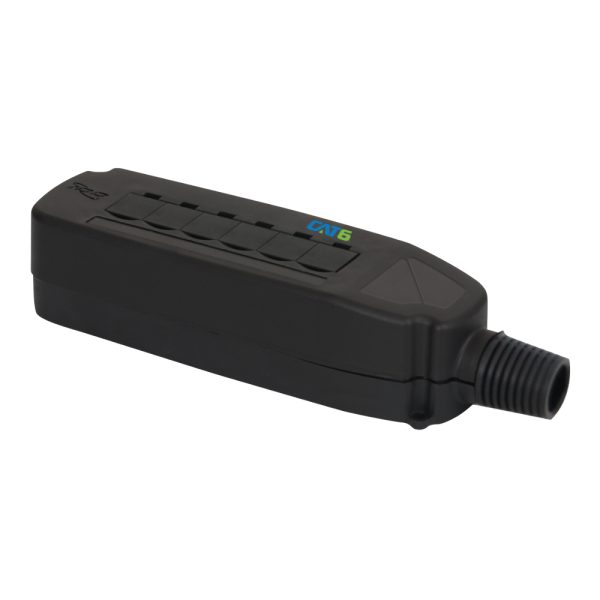

CAT6 Mobile Patch Box with 6 Ports

Features

• Provides a 6-port outlet appropriate for open architectural environments.
• Suitable for use with either 4-pair or 25-pair cable.
• Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
• Rugged construction allows for long-lasting use.
• Optional mounting on steel surfaces with mounting magnets (not included).
• Enhanced crosstalk cancellation reduces return loss and improves performance.
• Exceeds ANSI/TIA-568-B.2 Category 6 connecting hardware requirements.
• Used with CAT6 patch cords and 110 punch down tool.
• T568A or T568B wiring patterns.

Specifications

Material:

Jack Housing: ABS, UL 94V-0

Spring Wire: Square spring wire, tempered phosphorous bronze

110 Connector: Copper alloy, 100 microinches of bright solder over 100-micron inches of nickel underplate

Gold Rating: 50 micro inches of gold over 100 micro inches of nickel

Cover and Base: Polypropylene, UL 94V-0

Strain Relief: Soft PVC, UL 94V-0

Dust Cover: Soft PVC, UL 94V-0

Electrical:

Current Rating: 1.5 amps max

Dielectric withstanding voltage: 1000 volts RMS, 60 Hz

Contact Resistance: 5 milliohms

Mechanical:

Force: 100 grams

Temperature Range: -40 degrees C to 150 degrees F

Plug Retention in Jack: 30 lbs (133N) min

Physical:

Wire leads: 26 AWG solid wire

Color:

Color XX: BK-Black
