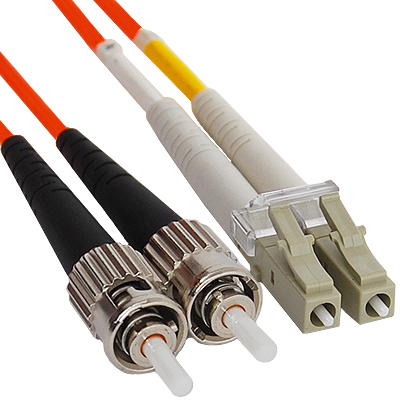

LC-ST Duplex Multimode 62.5/125 (OM1) Fiber Optic Patch Cable in Orange

Features

• Made from OFNR riser rated cables, exceeding industry requirements.
• Dust Cap included.
• 100% factory tested.

Specifications

Cable:

Fiber Counts: 2 Fiber Zipcords

Fiber Type: Multimode 62.5/125µm

Attenuation: 2.9/0.6 dB/km at 850/1300 nm

Bandwidth: 220 MHz.km EMB at 850 nm

Cable Data:

Cable diameter: .079 in (2.0mm)

Weight: 12 lbs/kft

Bend radius: 1.2″min

Loading: 135 lbs max

Impact cycle: 1500

LC Connector:

Ferrule: Zirconia

Insertion Loss: 0.2 dB Typical, 0.3 dB max

Reflection: N/A

ST Connector:

Ferrule: Zirconia

Insertion Loss: 0.2 dB Typical, 0.3 dB max

Reflection: N/A

Compliance:

ANSI/TIA-568-C.3

Length XX: 01, 02, 05, 07, and 10

Color:

Color XX: OR-Orange
