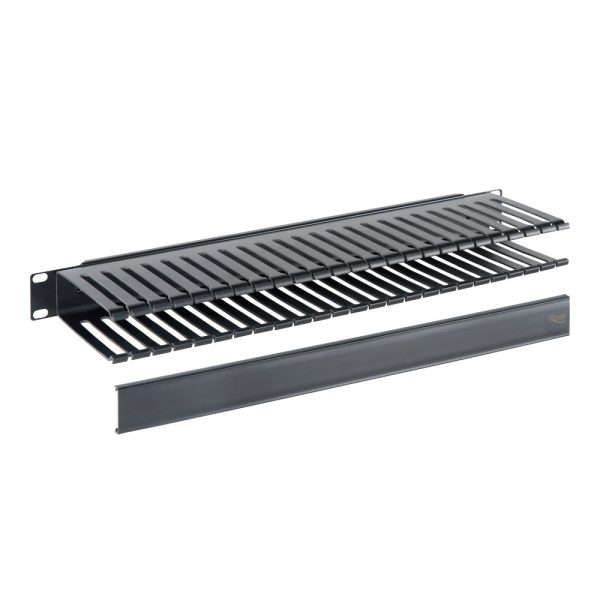

5″ Horizontal Deep Finger Duct Panel in 1 RMS

Features

• Provides flexibility for front cable management with a neat and clean appearance
• Designed with slotted ducts providing horizontal cable management on the front of a rack
• Designed to fit all standard 19” racks and cabinets
• Used with all ICCMS racks and brackets
• 5” Deep horizontal channel with top and bottom slotted flexible break away fingers that can be removed to allow routing large cable bundles
• Equipped with feed-through holes on the back side for easier cable routing from front to back or back to front
• Designed to organize up to 48 patch cables horizontally on 2-post racks, 4-post racks, wall mount racks, or wall mount brackets
• When used with the 78” Vertical Finger Duct Panels (ICCMSCMA73), the result is a complete and professional flush-mounted matching look that meets industry standards for proper installations of cable management
• Single-sided, 1RMS
• UL 1863 compliant

Specifications

Size: 1.75” height x 19.00” width x 5.40” depth

Material:

Panel:

Material: 16 GA CRS

Surface Finish: liquid Black Coating

Finger Duct:

Material: PVC, UL 94V-0

Finish: Texture, Black

Cover:

Material: PVC, UL 94V-0

Color: Black
