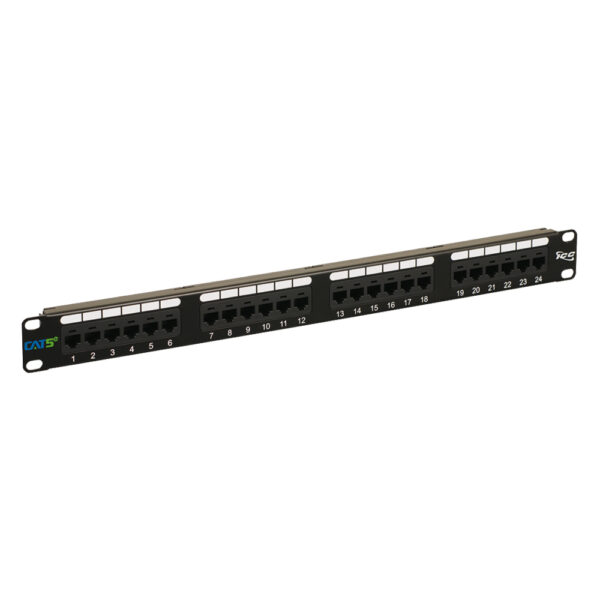

ICC CAT5e Patch Panel, UL Listed & PoE++ Rated Gigabit Applications, Rackmount 24 Port 1U 19-Inch Network Patch Panel with Rear 110 IDC Terminal Blocks for Gigabit Network Switch

Features

• HIGH-PERFORMANCE CONNECTIVITY: Rack-mounted CAT5e component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backward compatible with all lower rated category components.
• FUTURE-PROOF AND RELIABLE: Designed for Gigabit Ethernet, ensuring your network is future-proof. Ideal for Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE) up to 90W.
• EFFICIENT INSTALLATION AND QUICK REFERENCE: Features 110 IDC termination to reduce installation time. The 110 IDC on the rear can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference, fitting standard 19″ EIA rack mount width with 1U (1.75″) standard height.
• DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.
• ENHANCED CROSSTALK CANCELLATION: Engineered to exceed ANSI/TIA-568 Category 5e connecting hardware requirements with enhanced crosstalk cancellation, reducing return loss and improving overall network performance.
