Description

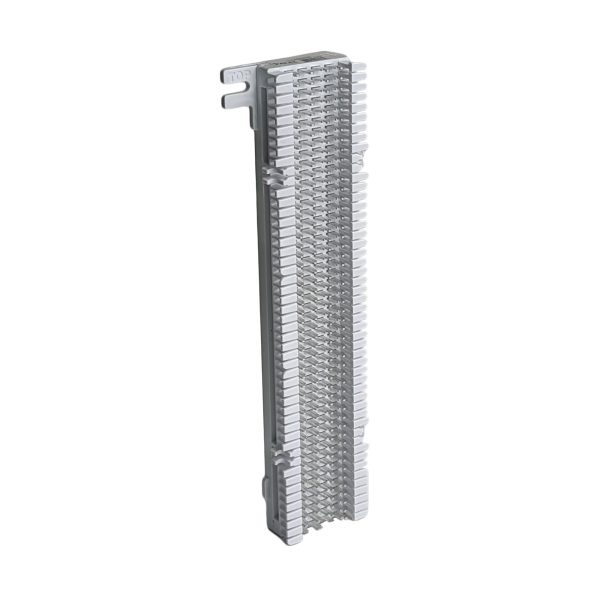

The ICC 66-Style 50-Pair Wiring Block is used to terminate multi-pair telephone and data cables for voice, security, and data applications. The wiring block provides up to 50 fixed cross-connections for terminating 22~26 gauge solid insulated cable or 18~19 gauge solid stripped cable. The block has a compact design for applications with limited space. It can be mounted to walls or backboards for entrance facilities and telecommunications closets.
Features
- HIGH-IMPACT MATERIAL: Constructed to withstand 3.0–20.0 ft-lbs/in, ensuring dependable performance in demanding environments.
- SAFETY COMPLIANCE: UL Listed (E125268), made from UL 94V-0 flame-retardant plastic and for enhanced safety in professional installations.
- CERTIFIED FOR PROFESSIONAL USE: UL 1863 compliant and TAA compliant to meet strict safety and regulatory standards for government and institutional installations.
- CONSISTENT IDC PERFORMANCE: Features IDC contacts with 100µ” tin plating, maintaining connectivity integrity through 200 punch-down cycles and supporting 22–26 AWG wires.
- EASY INSTALLATION FOR COMMUNICATION SYSTEMS: Wall-mount design eliminates the need for brackets, simplifying setup for telephone and data applications in professional environments.
- ACCESSORIES (SOLD SEPARATELY): Bridging Clips IC066BRCLP, Cover IC066CV050, 89B Mounting Bracket ICMB89B0WH, and 66 Punch Down Tool ICACSPDT00.
Specifications
Environmental:
Temperature Storage:
Storage:-40 to 70 degree C
Operational: -10 to 60 degree C
Electrical:
Electrical Insulation Resistance
500 mohms min at 100V DC
Dielectric withstanding voltage:
100V RMS at 60 Hz for 1 min
Contact Resistance: 2.5 mohms max
Mechanical:
Transverse Extraction Force:
MIN 5N for 24 AWG
MIN 3N for 26 AWG
Insertion/Extraction LIFE: 200 cycles min
IDC Wire Gauge: 22-24 AWG
Physical:
UL 94V-0
IDC: Brass plated with 100 micro
