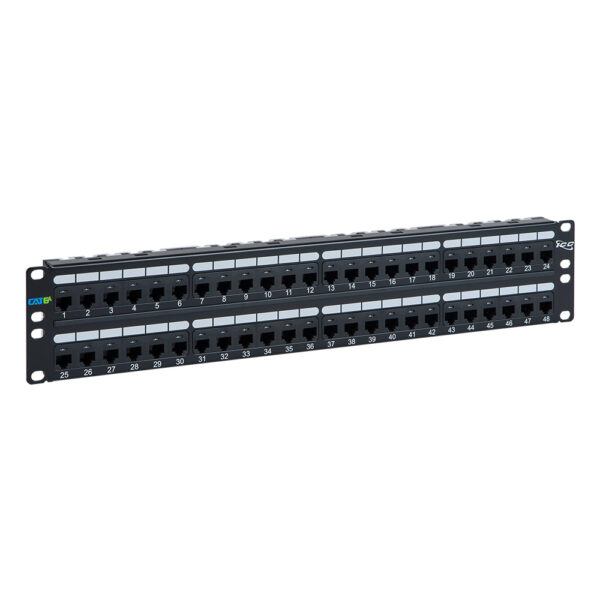

ICC CAT6A Patch Panel, UL Listed & PoE++ Rated 10 Gigabit Applications, Rackmount 48 Port 2U 19-Inch Network Patch Panel with Rear 110 IDC Terminal Blocks for Gigabit Network Switch

Features

• HIGH-PERFORMANCE CONNECTIVITY: Rack-mounted CAT6A component-rated fixed patch panel made with 16-gauge cold-rolled steel (16 GA CRS), delivering excellent performance for data networks requiring maximum speed and bandwidth. Backwards compatible with Cat6 and Cat5e cabling.
• FUTURE-PROOF AND RELIABLE: Designed for 10 Gigabit Ethernet, ensuring your network is future-proof. Ideal for 10 Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE++) up to 100W.
• EFFICIENT INSTALLATION AND QUICK REFERENCE: Featuring 110 IDC connections on the rear, this design reduces termination time and allows for re-termination over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference. It fits standard 19″ EIA rack mount width with a 1U (1.75″) standard height.
• DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.
• ENHANCED CROSSTALK CANCELLATION: The 110-Type IDC connections on the rear are positioned vertically to effectively reduce potential alien crosstalk. This design is engineered to exceed ANSI/TIA-568 Category 6A connecting hardware requirements, providing enhanced crosstalk cancellation, reducing return loss, and improving overall network performance.
