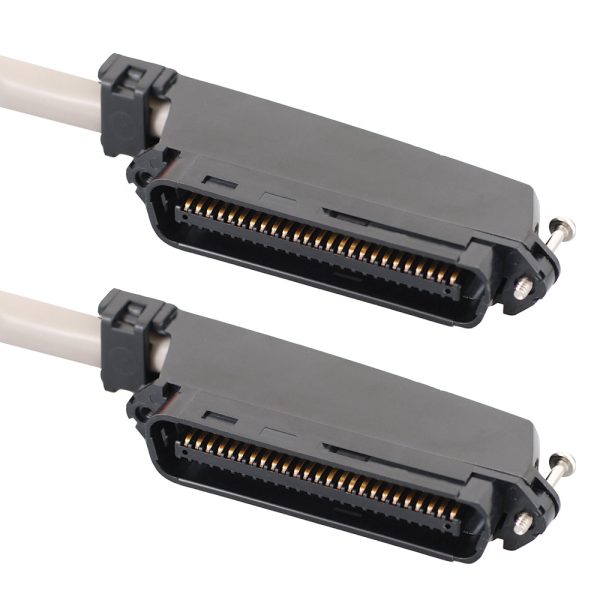

ICC Male to Male 25 Pair Telco Cable – Cat3 24AWG, 100% Solid Pure Copper, Gray Riser CMR Cable with 90 Degree 50 Pin Telco Connector for Voice and Low Data PBX Applications

Features

• IDC TERMINATION: Uses insulation displacement connectors (IDC) to terminate 25 pairs of wires onto 25 polarized pins, ensuring secure and stable mechanical connections.
• SECURE CONNECTIONS: Features two 50-pin male IDC telco connectors (RJ21) with high-strength copper alloy contacts, plated with 30 micro-inches of gold over nickel for reliable signal transmission.
• NATIONAL ELECTRICAL CODE (NEC) COMPLIANT: Built with 100% annealed solid bare copper conductors, meeting NEC Section 800.179, which mandates that “Conductors in communications cables, other than coaxial, shall be copper.” Rated for 75°C and 300V, ICC cables ensure stable network communications while reducing fire hazards.
• 90-DEGREE CONNECTORS: Equipped with dual 90-degree 50-pin male telco connectors (RJ21) in a standard CN50 form factor, featuring protective hoods for secure connections in compact installations.
• UL LISTED: Certified under UL listing E125268 and CMR riser-rated for flame resistance, allowing installation in vertical cable runs between floors.

Specifications

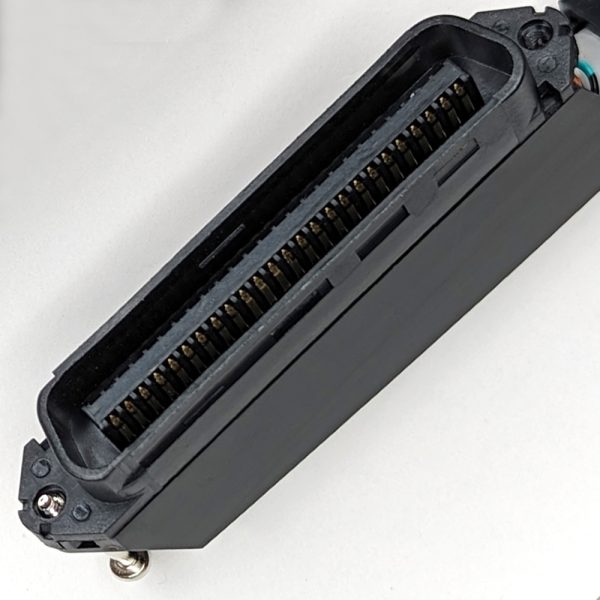

Male 50 Pin Telco Connector:

Material:

High Strength Copper Alloy Contacts

High Impact Thermo Plastic Housing and Cover

Finish: 30 micro inches of Gold over Nickel Plating in mating contact area

Color: Black

25 Pair CAT 3 Telco Cable:

Material:

24 AWG Solid Copper Conductors

PVC Insulation and Jacket

CMR

Color: Gray

Length XX: 05-5 ft, 10-10 ft, 15-15 ft, and 25-25 ft
