Description

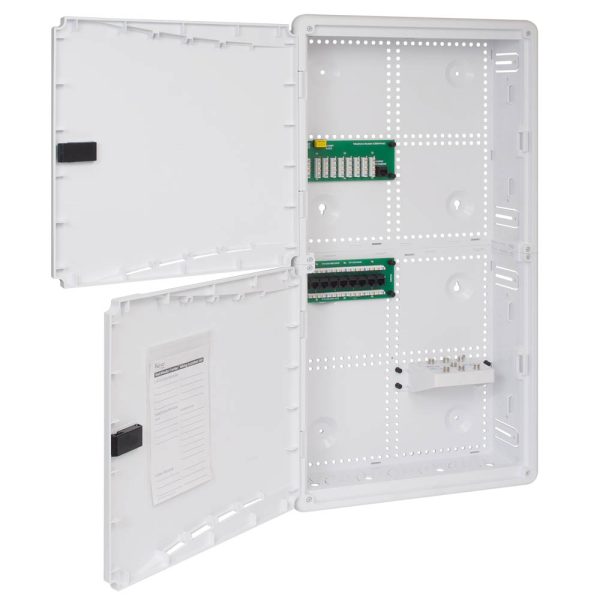

ICC’s 28-inch residential wiring enclosure with dual doors is designed to serve as a structured media center for distributing voice, data, video, audio, and security services in single-family homes. It includes a CAT6 8-port data module, 1×8 bridged telephone module with RJ-31X and expansion ports, and a 1×6 video splitter with 2 GHz bandwidth. The enclosure is constructed from 0.1-inch thick ABS plastic, which is lightweight and supports Wi-Fi signal performance. It features a universal mounting pattern that accommodates ICC and other standard modules, with sixteen internal mounting slots. The vented doors are reversible for left or right access and include beveled edges with screw-down points to cover drywall gaps. The unit includes removable knockouts for cable routing and up to four AC power outlets (not included), integrated cable tie points, and mounts between standard 16-inch wall studs or directly to the wall. It is UL Listed (E125268), flame rated to UL 94V-0, and complies with TIA-568-C, TIA-570-B, and TIA-607 standards.
Features
- INCLUDES VDV CONNECTIVITY MODULES: Packaged with CAT6 8-Port Data, 1×8 Bridged Telephone with RJ31X jack for security systems, and 1×6 Video Splitter. Modules are packaged separately, allowing them to be stored safely until the cabling and final installation phase. Supports connections for up to 8 Ethernet devices with PoE++ compatibility, distributes 4 phone lines to 8 locations, and splits cable TV or satellite signals with a 2 GHz bandwidth.
- DURABLE ABS PLASTIC CONSTRUCTION: Built with 0.1-inch thick ABS plastic, making it lightweight, sturdy, and 18% stronger compared to standard enclosures. Improves Wi-Fi signal range and fits between 16″ wall studs or mounts directly to the wall with included mounting hardware. For indoor use only.
- UL LISTED, TAA COMPLIANT & SECTION 889 CERTIFIED: UL Listed (E125268) for safety and reliability in professional installations. Meets U.S. government regulations, including TAA compliance and Section 889 certification, with RoHS compliance for added environmental safety.
- VENTED DOORS WITH MUD GUARD & POWER KNOCKOUTS: Comes with vented doors to assist with heat dissipation and protect modules and electronics. The doors are reversible, allowing them to swing open to the left or right. The beveled door frame screws down to cover drywall edges. Includes a protective mud guard for the rough-in phase and two bottom power knockouts for AC outlets and cable exits on all sides. Install ICC plastic grommets (SKU ICRESDCAC3), sold separately, to protect cables.
- UNIVERSAL HOLE PATTERN & BUILT-IN CABLE MANAGEMENT: Designed with a standard mounting grid to fit ICC connectivity modules and most electronic modules without additional brackets. Built-in bridge lances keep cables organized, while the hole pattern allows modules to snap in securely, horizontally or vertically, for a complete home network solution.
Specifications
Enclosure
Material: ABS, UL 94V-0
Color: White
Surface Finish: Matte
Connectivity Modules
For individual module specifications please see the “Product Documents” tab

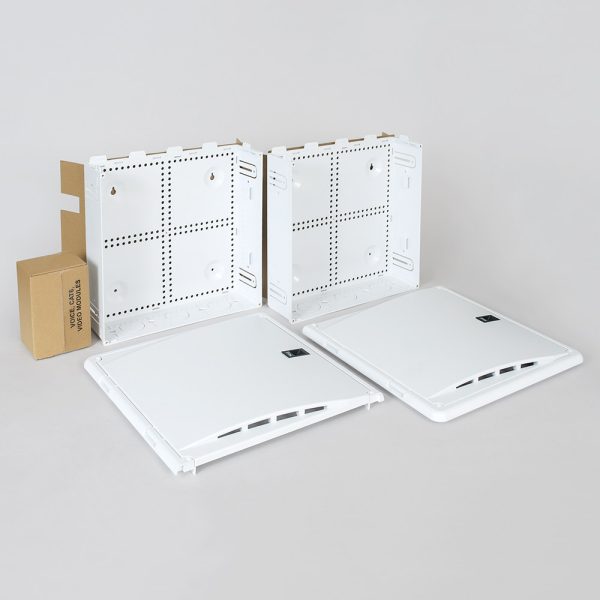

Package Includes:
- 28” Plastic Net Media Center, 2 Pieces
- Net Media Center Door, 2 Pieces
- Cardboard Protective Cover, 2 Pieces
- CAT 6 Module, Data, 8- Port , 1 Piece
- Telephone Module, 8-Port w/RJ31X, 1 Piece
- Resi Module, 2 GHz Video Splitter, 1×6, 1 Piece
- 6-18 x 3/4″, Nickel Plated, Pan Head Phillips, Self-Tapping Screw, 8 Pieces
- 10-16 x 1″ Zinc Plated, Flat HeadPhillips, Wood Screw, 4 Pieces
- Wiring Location Sheet, 1 Sheet
- Protective Cover, 1 Piece
