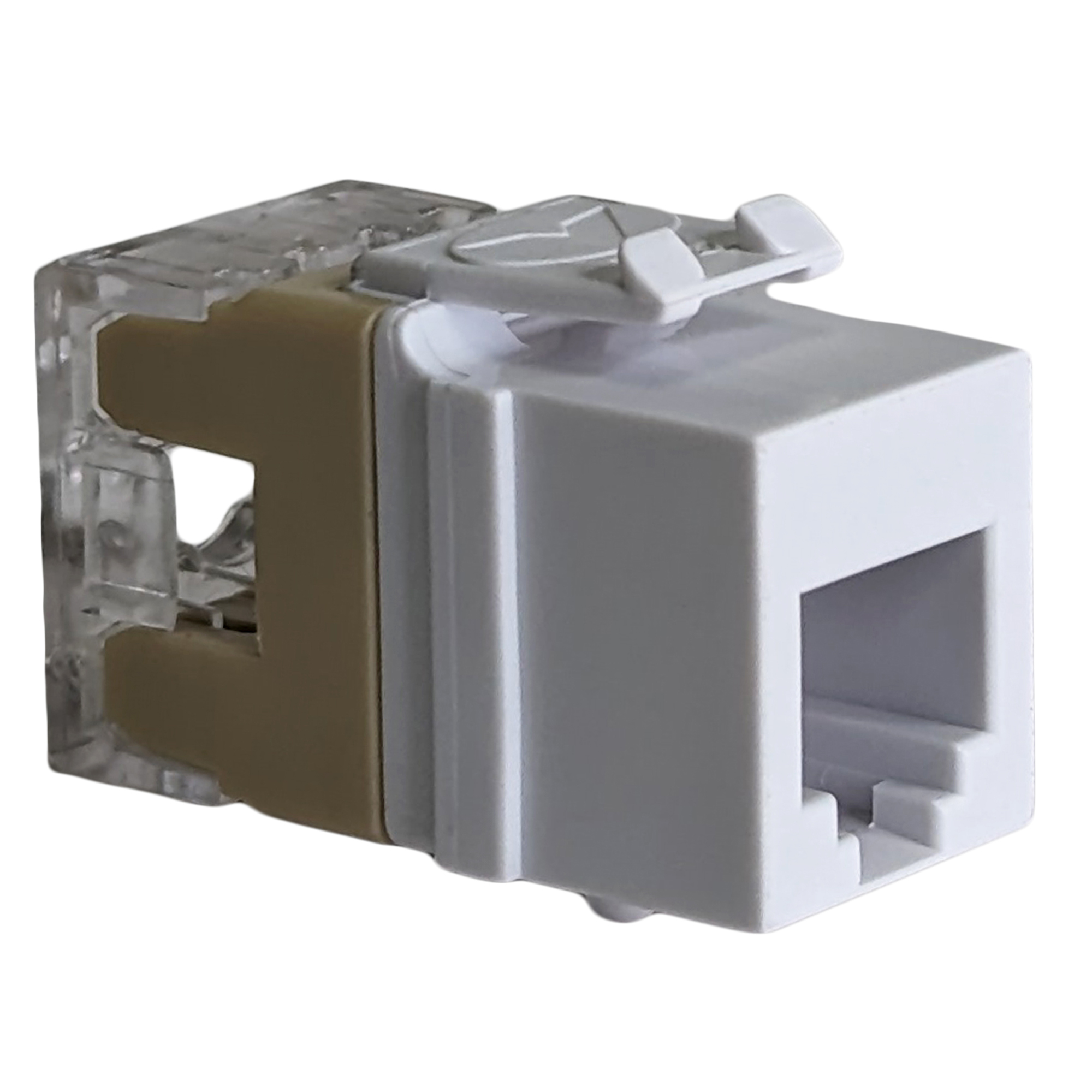

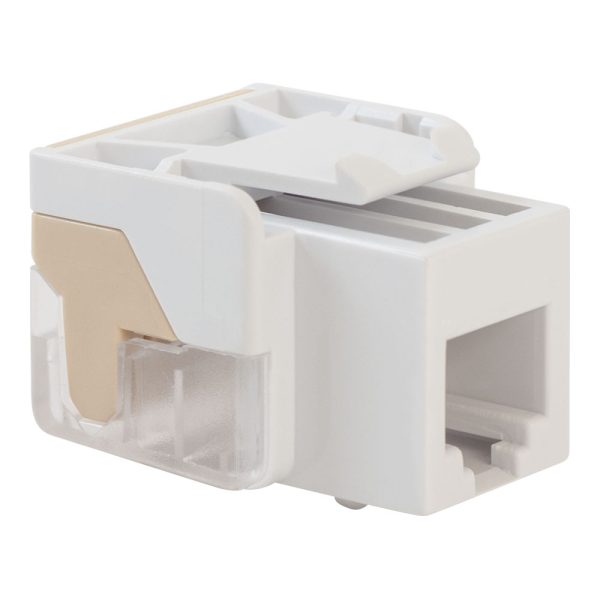

ICC Voice Grade Telephone Keystone Jack with Inline IDC (Easier Termination), 6P6C RJ11, UL Listed TAA Compliant for Wall Plate or Patch Panel, Works with JackEasy Termination Tool

Features

• VOIP READY & RELIABLE: Engineered for clear voice transmission, ICC’s RJ11 Keystone Jacks feature 50 micro-inch gold-plated, high-retention contacts with 6-Position, 6-Conductor (6P6C) configurations. Supports 100+ re-terminations and 750 plug-to-jack cycles, ensuring consistent performance in voice-grade and VoIP networking systems.
• FAST TERMINATION FOR 3 PAIRS: Compatible with ICC’s JackEasy 4-Pair Termination Tool (SKU ICACSPDTEH) enabling efficient termination of 3 pairs in a single squeeze. Features phosphor bronze alloy IDC pins for dependable performance and works seamlessly with RJ11 (6P6C) patch cables.
• TAA COMPLIANT & UL LISTED: Meets U.S. government regulations, including TAA and Section 889 requirements. UL 1863 certified for safety and quality, ensuring reliable performance for voice-grade applications in commercial installations.
• FAST WIRING WITH IN-LINE IDC: The wide rear base provides a secure grip, making connectors easier to handle, remove, and reattach during installation. Includes color-coded UTP and wiring diagrams for quick and easy reference, conveniently displayed across the IDC. Designed for 6-position, 6-conductor configurations, these connectors ensure compatibility with a wide range of business system applications.
• COMPLETE CABLING SYSTEM: Install ICC Voice Keystone Jacks with ICC 6P6C Patch Panels and ICC CAT5e cables to build a reliable VoIP network. Using CAT5e cabling ensures enhanced durability and compatibility with UTP wiring for VoIP applications, providing a dependable and seamless solution for voice-grade connectivity.

Specifications

Material:

Housing: ABS, UL 94V-0

Contact: Phosphor bronze Alloy plated with 50 micro inches of gold over 70-100 micro inches of nickel

Electrical:

Current rating: 1.5 amps max

Voltage rating: 150 volts alternating

Dielectric withstanding voltage: 1000 volts RMS, 60Hz

Insulation resistance: >10 mohms

Mechanical:

Mated force: 5 lbs max

Unmated force: 5 lbs max

Plug retention force: 20 lbs min

Durability: 750 cycles

Gold plating: 1.27 micron/50 micro inch min

Connector: insulation displacement connector (IDC) accepts 22-24 AWG solid wire

Termination Cap:

Material: PC, UL 94V-0

Color: Clear

Color:

Color XX: AL-Almond, BK-Black, BL-Blue, GY-Gray, IV-Ivory, & WH-White
