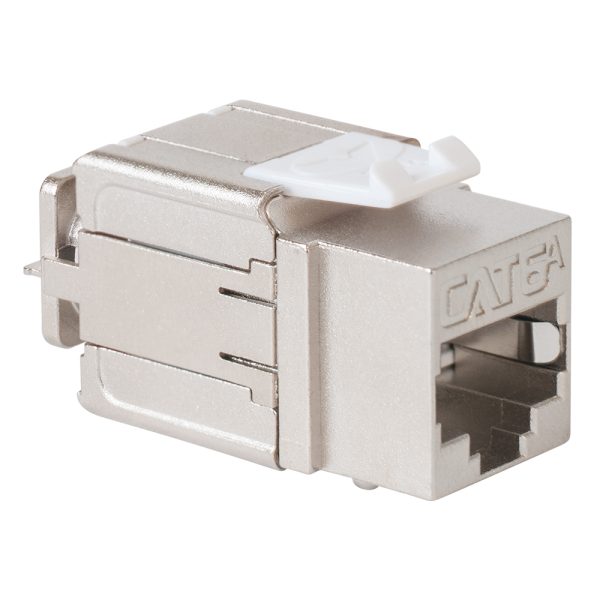

ICC Shielded FTP CAT6A Keystone Jack with Slim Profile 180 Degree Punch Down, 10Gbps RJ45 UL Listed PoE++ TAA Compliant for Wall Plate or Patch Panel, Works with JackEasy Termination Tool

Features

• SHIELDED FTP CONNECTOR & PoE++ RATED: This CAT6A keystone jack features an FTP die-cast connector and wire cap, shielding terminations from harmful EMI near power cables and machinery. With 50 micro-inch gold-plated contacts over 100 micro-inches of nickel, it supports up to 100 watts of PoE++ for high-power devices like PTZ cameras and networked equipment, ensuring reliable 8P8C configurations for high-power applications.
• FAST 4-PAIR TERMINATION: Built to work with ICC’s JackEasy 4-Pair Termination Tool (SKU ICACSPDTEH), enabling termination of all four pairs in a single squeeze. Features phosphor bronze alloy IDC pins, designed to withstand 100+ re-terminations for reliable and durable performance. Supports over 750 plug-to-jack insertion cycles for extended usability, with compatibility for RJ45 (8P8C) patch cables.
• TAA COMPLIANT & SECTION 889 CERTIFIED: ICC CAT6A keystone jacks meet U.S. government regulations, including TAA and Section 889. Manufactured in approved countries, UL Listed, RoHS and UL 1863 compliant for safety. ETL Verified to TIA 568.2-D (U.S.) and IEEE 802.3 standards, supporting 10-Gigabit Ethernet (10GBASE-T) and backward compatibility with Fast Ethernet (100BASE-TX) and Gigabit Ethernet (1000BASE-T).
• MAX. SPACE EFFICIENCY – The slim body of the jack maximizes space utilization in modular patch panels and work area outlets for high density applications, allowing for greater connectivity and more port configurations within the same space. Includes TIA-568A/B color-coded wiring diagrams conveniently displayed on the IDC for quick reference. Compatible with 8-position, 8-conductor configurations, ensuring versatility for a wide range of network installations.
• COMPLETE CABLING SYSTEM: Install ICC CAT6A Keystone Jacks with ICC CAT6A Cables, CAT6A Patch Panels, and CAT6A Patch Cables to achieve both Permanent Link and Channel Link specifications for end-to-end network performance. This configuration provides maximum NEXT headroom, exceeding ANSI/TIA-568 Category 6A requirements for enhanced crosstalk cancellation, reduced return loss, and improved network reliability. Backward compatible with Cat6, Cat5e and Cat5 components and cabling.

Specifications

Environmental Conditions:

Temperature Range

Storage:-40 to 70°C, Operational:-10 to 60°C

Relative Humidity (Operational): Maximum Noncondensing 93%

Electrical:

Insulation Resistance: 500 mega ohm min

Contact Resistance: 20 milliohm max

Dielectric Withstanding Voltage: 1,000 volts D.C., 60 Hz, 1 min

Mechanical:

Total Contact Force: 800 gram for 8 wires leads minimum

Retention: 50N (11 lbf) for 60S±.5S

Insertion Life: 750 cycles min

Physical:

Housing: Zinc-Alloy Fully Shielded

Spring Wire: Phosphor Bronze Alloy Plated with 50 micro-inch of gold over 70-100 micro-inch of nickel

Wire Cap: Zinc-Alloy

IDC Wire Gauge: 22-24 AWG Solid Wire
