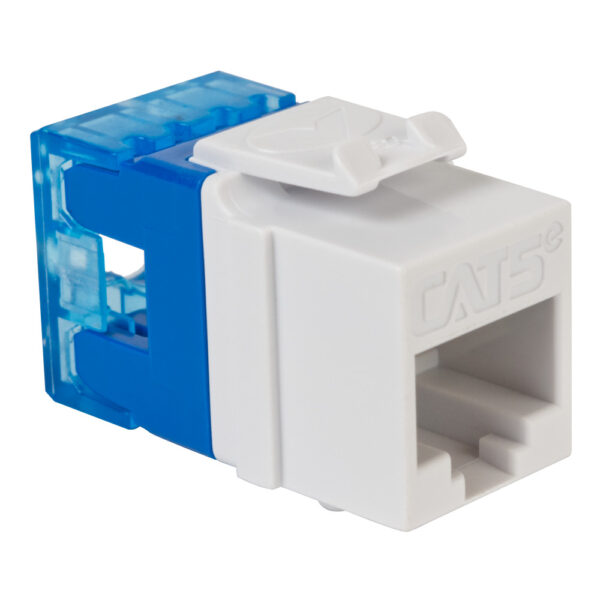

ICC CAT5e Keystone Jack with Slim Profile 180 Degree Punch Down, RJ45 UL Listed PoE++ TAA VoIP Compliant for Wall Plate or Patch Panel, Works with JackEasy Termination Tool

Features

• PoE++ RATED FOR HIGH-POWER DEVICES: This CAT5e keystone jack features 50 micro-inch gold-plated high-retention contacts over 100 micro-inches of nickel, providing support for up to 100 watts of Power over Ethernet (PoE++). Ideal for powering devices such as pan-tilt-zoom security cameras, webcams, and other types of networked equipment, these RJ45 (8P8C) connectors are built for 8-position, 8-conductor configurations, ensuring a reliable connection for high-power applications.
• FAST 4-PAIR TERMINATION: Built to work with ICC’s JackEasy 4-Pair Termination Tool (SKU ICACSPDTEH), enabling termination of all four pairs in a single squeeze. Features phosphor bronze alloy IDC pins, designed to withstand 100+ re-terminations for reliable and durable performance. Supports over 750 plug-to-jack insertion cycles for extended usability, with compatibility for RJ45 (8P8C) patch cables.
• TAA COMPLIANT & SECTION 889 CERTIFIED: ICC CAT5e keystone jacks meet U.S. government regulations, including TAA and Section 889. Manufactured in approved countries, with UL Listing and RoHS Compliance. UL 1863 compliant for safety, thereby ensuring adherence to the highest standards. ETL Verified for performance, they conform to TIA 568.2-D (U.S.) and IEEE 802.3 (International) standards, supporting Fast Ethernet (100BASE-TX) and Gigabit Ethernet (1000BASE-T) applications.
• MAX. SPACE EFFICIENCY – The slim body of the jack maximizes space utilization in modular patch panels and work area outlets for high density applications, allowing for greater connectivity and more port configurations within the same space. Includes TIA-568A/B color-coded wiring diagrams conveniently displayed on the IDC for quick reference. Compatible with 8-position, 8-conductor configurations, ensuring versatility for a wide range of network installations.
• COMPLETE CABLING SYSTEM: Install ICC CAT5e Keystone Jacks with ICC CAT5e Cables, CAT5e Patch Panels, and CAT5e Patch Cables to achieve both Permanent Link and Channel Link specifications for end-to-end network performance. This configuration provides maximum NEXT headroom, exceeding ANSI/TIA-568 Category 5e requirements for enhanced crosstalk cancellation, reduced return loss, and improved network reliability. Backward compatible with all lower-rated category components and cabling.

Specifications

Material:

Housing: PC, UL 94V-0

Termination Cap: PC, UL 94V-0

Electrical:

Current rating: 1.5 amps

Insulation resistance: 500 mohms min

Contact resistance: 20 mohms max

DC resistance: 0.1-ohm max

Transmission performance exceeds Category 5e connecting hardware requirements specified in ANSI/TIA-568-C.2 when used with compatible horizontal cable

Mechanical:

Plug insertion life: 750 cycles min

Plug and jack contact force: 100 grams min using FCC approved plug

Plug retention force: 50N (11 lbs) for ±60s ± 5s

Temperature: -40° to 150° F (-40° to 68° C)

Physicals:

Jack wiring: Phosphor bronze alloy plated with 50 micro inches of gold over 70-100 micro inches of nickel

Connector: insulation displacement connector (IDC); accepts 22-24 AWG solid wire

Color:

Colors: XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, WH-White, YL-Yellow
