Description

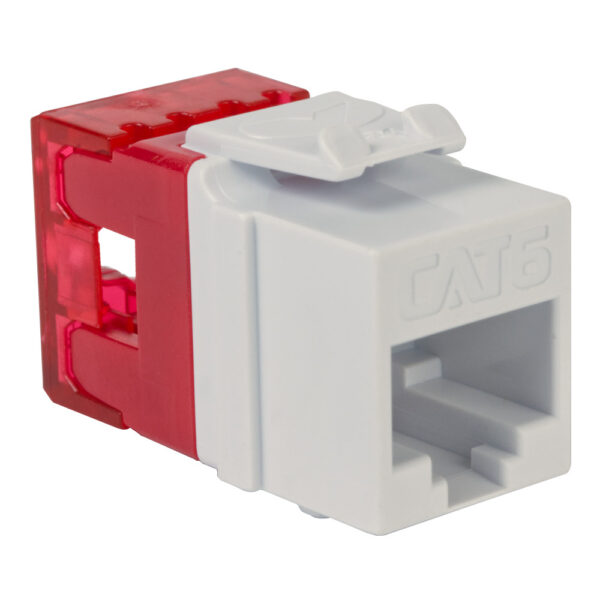

CAT6 High Density (HD) Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The Category 6 HD design offers a smaller rear footprint maximizing space in confined work areas. Features CAT6 rated connectors provide excellent performance for data networks. PCB technology provides maximum performance and superior signal quality. Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals. Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements. Designed with rear split back 110 IDC reducing termination time. Terminate with 110 punch down tool or Jack Easy Termination Tool. Reduced rear footprint allows for greater connectivity density. Provides for more port configurations in a smaller area. Includes an integrated TIA-568A/B color wiring diagram. Backward compatible with all lower rated category components. Works with all Work Area Outlets faceplates, inserts, surface mount boxes. Used with Category 6 patch cords. Exceeds ANSI/TIA-568-C requirements for permanent performances. UL 1863 Compliant.
Features
- PoE++ RATED FOR HIGH-POWER DEVICES: This CAT6 keystone jack features 50 micro-inch gold-plated high-retention contacts over 100 micro-inches of nickel, providing support for up to 100 watts of Power over Ethernet (PoE++). Ideal for powering devices such as pan-tilt-zoom security cameras, webcams, and other types of networked equipment, these RJ45 (8P8C) connectors are built for 8-position, 8-conductor configurations, ensuring a reliable connection for high-power applications.
- FAST 4-PAIR TERMINATION: Built to work with ICC’s JackEasy 4-Pair Termination Tool (SKU ICACSPDTEH), enabling termination of all four pairs in a single squeeze. Features phosphor bronze alloy IDC pins, designed to withstand 100+ re-terminations for reliable and durable performance. Supports over 750 plug-to-jack insertion cycles for extended usability, with compatibility for RJ45 (8P8C) patch cables.
- TAA COMPLIANT & SECTION 889 CERTIFIED: ICC CAT6 keystone jacks meet U.S. government regulations, including TAA and Section 889. Manufactured in approved countries, with UL Listing and RoHS Compliance. UL 1863 compliant for safety, thereby ensuring adherence to the highest standards. ETL Verified for performance, they conform to TIA 568.2-D (U.S.) and IEEE 802.3 (International) standards, supporting Fast Ethernet (100BASE-TX) and Gigabit Ethernet (1000BASE-T) applications.

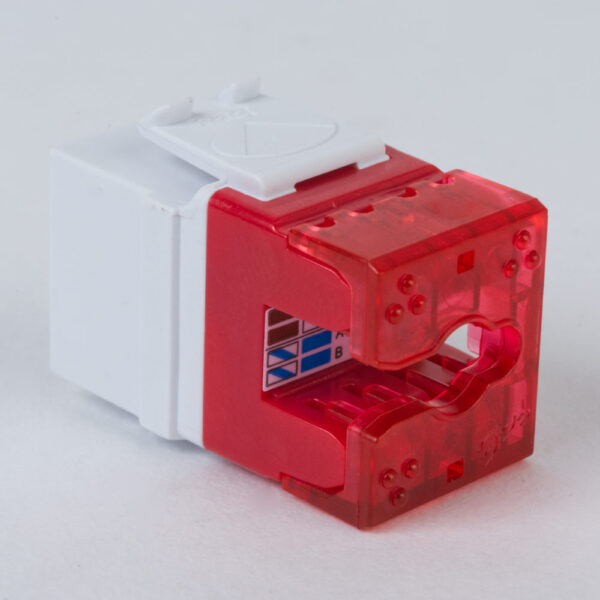

- MAX. SPACE EFFICIENCY – The slim body of the jack maximizes space utilization in modular patch panels and work area outlets for high density applications, allowing for greater connectivity and more port configurations within the same space. Includes TIA-568A/B color-coded wiring diagrams conveniently displayed on the IDC for quick reference. Compatible with 8-position, 8-conductor configurations, ensuring versatility for a wide range of network installations.
- COMPLETE CABLING SYSTEM: Install ICC CAT6 Keystone Jacks with ICC CAT6 Cables, CAT6 Patch Panels, and CAT6 Patch Cables to achieve both Permanent Link and Channel Link specifications for end-to-end network performance. This configuration provides maximum NEXT headroom, exceeding ANSI/TIA-568 Category 6 requirements for enhanced crosstalk cancellation, reduced return loss, and improved network reliability. Backward compatible with Cat5e and Cat5 components and cabling.
Specifications
Material:
Termination Cap: PC, UL 94V-0
Housing: ABS, UL 94V-0
Electrical:
Current Rating: 1.5 amps
Insulation Resistance: 500 mohms min
Contact Resistance: 20 mohms max
DC Resistance: 0.1-ohm max
Mechanical:
Plug Insertion Life: 750 cycles min
Plug and Jack Contact Force: 100 grams min
Using FCC approved plug
Plug Retention Force: 30 lbs min
Temperature: -40° to 150° F (-40° to 68° C)
Physicals:
Jack Wiring: 50 Micro Inches of Gold over 100 Micro Inches of Nickel
Connector: Insulation Displacement Connection (IDC)
Accepts 22-24 AWG Solid Wire
Color:
Color: Transparent Red
Color: XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, WH-White, & YL-Yellow
