Description

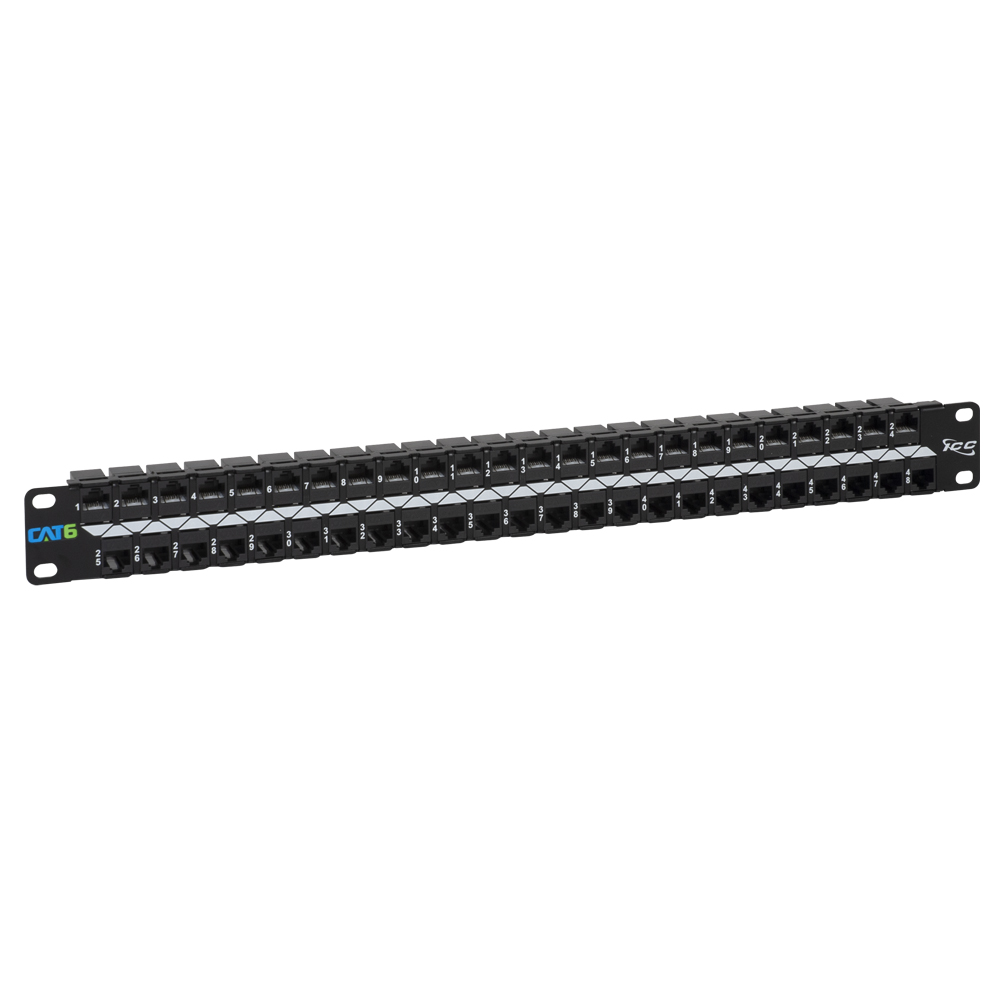

ICC’s Category 6 feed-through patch panels are designed for quick field installation and to save end-users punch downtime. The 48-port feed-through patch panel couples ports consisting of RJ-45-to-RJ-45 connection on both sides, which allows quick patch cords connection without the need to punch down UTP wires on the patch panels. The High-Density 48 ports are available in a 1U or rack mount space (RMS). All patch panels are fully loaded with Category 6 modular couplers and tested to ensure compliance with ANSI/TIA-568 Category 6 performance standards.
Features
- Eliminate punching down UTP wires to the patch panels.
- Quick installation, no punch down required.
- Get 48 ports in 1U of rack mount space.
- Features RJ-45-to-RJ-45 connection on both sides of the patch panel.
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts on each port.
- Ideal solution for consolidation point such as moves, adds, and changes (MACs).
- Designed to fit standard 19″ wide racks and cabinets.
- Rack-mounted reinforced steel panel with pre-numbered ports.
- Flush mount design adds stability.
Specifications
Material:
Blank Patch Panel: 16 GA CRS
Surface Finish: Black Powder Coat

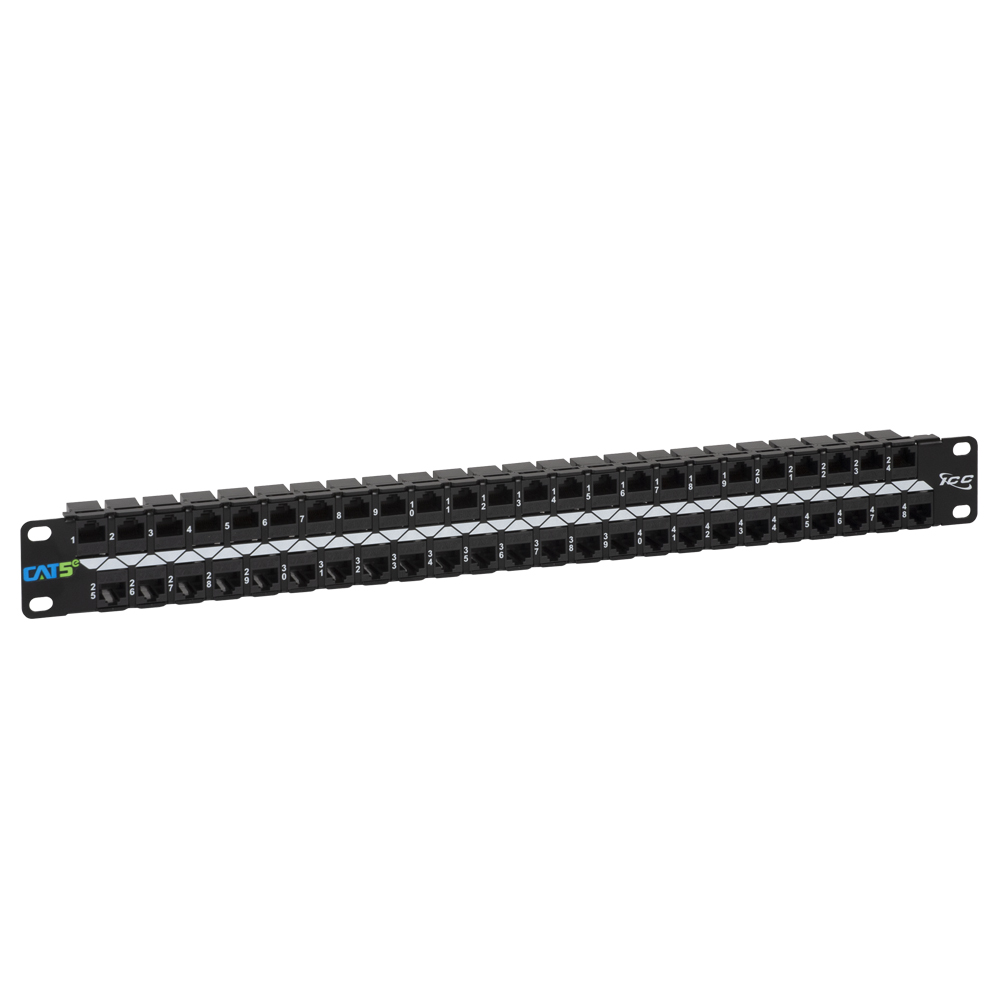

CAT 5e Coupler:
Housing: ABS, UL 94V-0
Color: Black
Contact: Phosphor Bronze Gold Plating over 100 microinch nickel
Gold Plating: 1.27 micron/50 micro
Electrical:
Current Rating: 1.5 amp max
Voltage Rating: 150 Volts Alternating
Dielectric Withstanding Voltage: 1000v RMS, 60 HZ
Insulation Resistance: 10 mohms
Mechanical:
Force: 5 lbs max
Plug Retention in Jack: 20 lbs min
Durability: 750 cycles
