Description

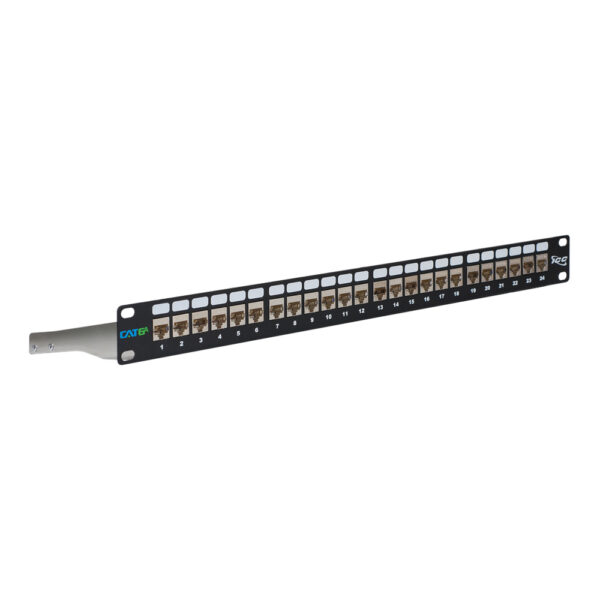

ICC’s 24-Port CAT6A Shielded Keystone Patch Panel delivers 10G Ethernet performance with EMI protection, featuring CAT6A FTP shielded keystone jacks and a rear cable management bar in a compact 1U rackmount design. Engineered to minimize alien crosstalk and meet or exceed TIA-568-B.2-10 and IEEE 802.3an standards, this panel supports high-bandwidth applications including 10/100/1G/10G Ethernet. Ideal for high-density environments and sensitive installations such as data centers and government networks, it includes 50 microinches of gold plating over 100 microinches of nickel for long-term signal integrity. Constructed from reinforced steel with grounding studs and a zinc-plated backplate, it ensures reliable performance and PoE++ compliance up to 100W. Includes shielded keystone connectors, cable support bar, and mounting screws for installation in standard 19” racks.
Features
- SHIELDED DESIGN FOR EMI PROTECTION: Engineered to protect against electromagnetic interference (EMI), this patch panel ensures reliable performance in shielded environments, making it ideal for professional and industrial applications. Includes ICC CAT6A Shielded Keystone Jacks, featuring FTP die-cast connectors and wire caps for additional EMI shielding near power cables and machinery.
- PoE++ RATED FOR HIGH-POWER APPLICATIONS: The included CAT6A shielded keystone jacks support up to 100 watts of PoE++ for high-power devices like PTZ cameras, Wi-Fi access points, and other networked equipment. With 50 micro-inch gold-plated contacts over 100 micro-inches of nickel, these jacks ensure reliable and secure connections in demanding environments.

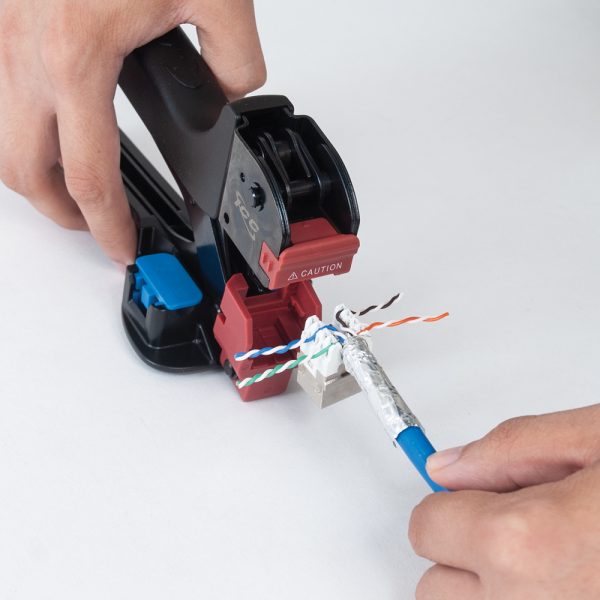

- FAST TERMINATION & RELIABLE PERFORMANCE: Features ICC’s CAT6A Shielded Keystone Jacks, designed for 4-pair termination with ICC’s JackEasy Termination Tool (SKU: ICACSPDTEH), sold separately, enabling all pairs to terminate in a single squeeze. Each jack withstands over 750 plug-to-jack cycles and 100+ re-terminations for long-term durability and performance.
- REAR CABLE MANAGEMENT WITH FLUSH MOUNT DESIGN: Keystone jacks sit flush with the front face of the panel, reducing cable snags and maintaining a clean, professional appearance. The rear cable management bar features integrated tabs to guide and secure cables, ensuring a clean, strain-free, and organized setup while maintaining proper grounding and EMI protection.
- EIA-310-E COMPLIANT, TAA COMPLIANT & UL LISTED: Designed to fit all standard 19-inch racks and cabinets with pre-drilled holes for universal mounting. Includes #12-24 x 5/8” pilot point screws for easy installation. Meets U.S. government regulations, including TAA and Section 889 certification, and is UL Listed (E125268), RoHS compliant, and ETL Verified to TIA 568.2-D standards for 10-Gigabit Ethernet (10GBASE-T) performance.
Specification
Environmental conditions:
Temperature range storage: -40° to 70°C
Operational: -10° to 60°C
Relative humidity (operational): Maximum noncondensing 93%
Electrical:
Electrical Insulation resistance: 500 mohms min @ 100v dc
Contact Resistance: 20 mohms max.
Dielectric Withstanding Voltage: 1000v DC or AC peak contact @ 60hz for 1 minute
Mechanical:
Total Contact Force: 800 gram for 8 wire leads minimum
Retention: 50n (11 LBF) or 60s±5s
Insertion/Life: 750 cycles min.
Physical:
Housing: Zinc Alloy fully shielded
Spring Wire: Phosphor Bronze Alloy plated with 50 micro-inch of gold over 70~100 micro-inch of nickel
Wire Termination Cap: ABS
IDC Wire Gauge: 22-24 AWG
Certification:
Meets ANSI/TIA-568.C.2 (500MHz)
