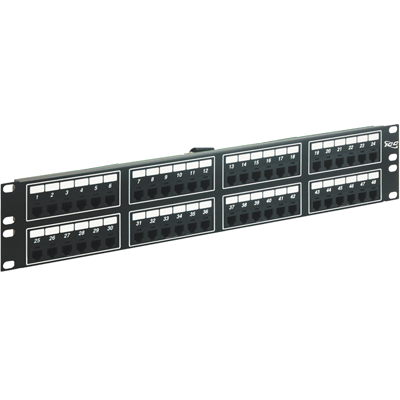

ICC Voice 8P2C Patch Panel with Male Telco in 48 Ports and 2 RMS
| Connector: 8P2C |
|
| Telco Connector Gender: Male | |
| Ports: 48 |
Country of Origin (subject to change): Taiwan, TAA compliant
Description
ICC’s Telco-style 48-port patch panels consist of 2-wire RJ-45 USOC-wiring scheme are ideal for PBX phone systems. Each patch panel connects to 48 RJ-45 patch cords on the front and link phone system with 50-pin Telco connectors on the back. Each 50-pin male Telco connector comes with hook and loop ties that are seated in a socket to secure 25-pair cable for either 90 degrees or 180 degrees cable exits. Each patch panel also features front write-on labeling area for port identification.
Features
- Rack mountable 48 port, RJ-45, 8 positions with 2 conductors.

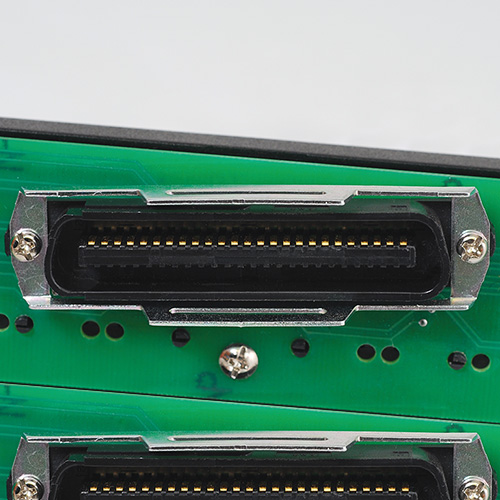

- Integrated male 50-pin Telco connector(s).
- Designed to fit all standard 19″ racks or cabinets, 1 RMS or 2 RMS.
- Ideal for KSU or PBX phone systems.
Specifications
Material:
48 Port Patch Panel: 16 GA CRS
Jack Housing: ABS, UL 94V-0
Spring Wire: Square Spring Wire, Tempered Phosphor Bronze
Gold Rating: 50 micro inch of Gold over 100 micro-inches of Nickel
Surface Finish: Black Powder Coat
