Description

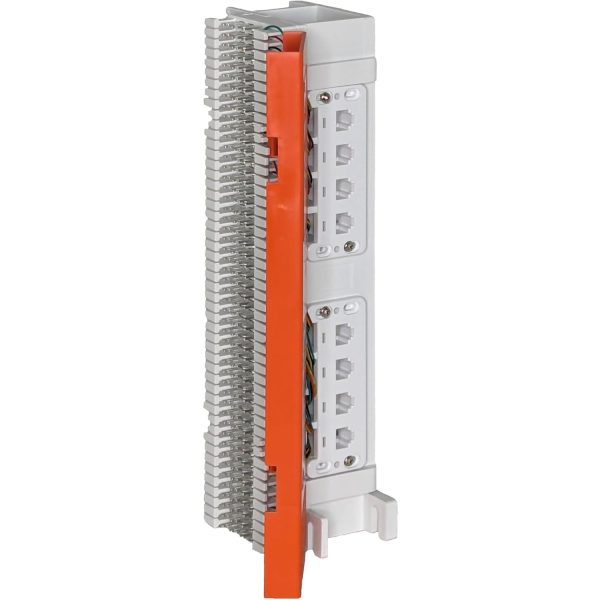

The ICC 66 Block Prewired with 12 RJ11 6P4C ports provides a structured solution for telephone and voice communication systems, offering a pre-terminated design that simplifies installation and maintenance. Featuring an 89D mounting bracket for wall mounting and a protective hinged cover, it ensures a neat and professional installation. The gold-over-nickel-plated terminals resist corrosion, maintaining reliable connections over time. Designed to accommodate 22-24 AWG wires, this TAA-compliant wiring block is ideal for low-voltage telecom applications in office, industrial, and institutional settings.
Features

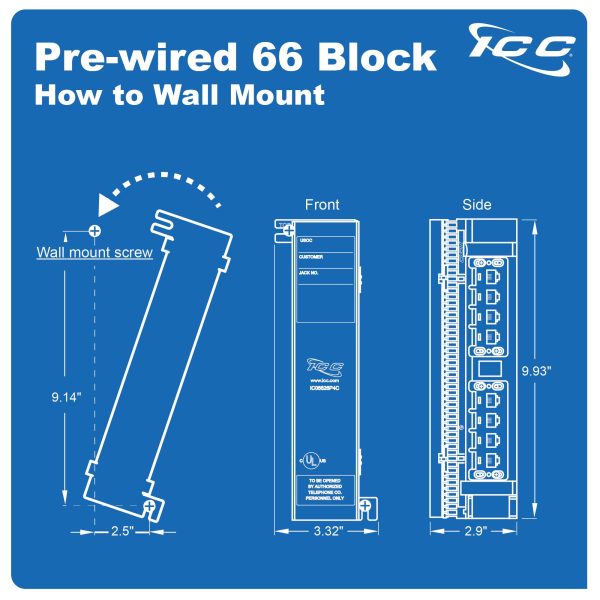

- PRE-WIRED WITH 12-PORT 6P4C RJ11 CONNECTORS: The 66 block comes pre-wired with twelve 6P4C RJ11 connectors, providing quick and reliable connections for voice applications. Includes an 89D mounting bracket that allows cable routing behind the block when mounted to a wall, simplifying installations for telephone systems, PBX, and low-voltage telecom equipment.
- CONSISTENT IDC PERFORMANCE WITH COVER: Features brass IDC contacts with 100µ” tin plating, maintaining connectivity integrity through 200 punch-down cycles and supporting 22–24 AWG wires. Includes a hinged cover to keep dust out and protect against rust, helping it last longer.
- DURABLE TERMINALS: Built with gold over nickel-plated high-strength copper alloy terminals to prevent corrosion and ensure reliable performance through repeated connections. The thermoplastic housing provides durability for telephone and voice data applications.
- UL LISTED AND COMPLIANT MATERIALS: The 66 wiring block and 89D bracket are made from UL 94V-0 flame-retardant plastic. The wiring block is designed to withstand 3.0–20.0 ft-lbs/in, ensuring dependable performance in demanding environments. Both meet U.S. government regulations, including TAA and Section 889 certification, making them suitable for government and institutional installations. They are UL Listed (E125268) and RoHS compliant, providing safety and reliability.
- ACCESSORIES (SOLD SEPARATELY): ICC Bridging clips (IC066BRCLP) and 66 punch down tool (ICACSPDT00).
Specifications
Material:
Housing: High Impact Retardant Plastic, UL 94V-0
IDC: Brass with 100 microinches of Tin
Spring Wire: Phosphor Bronze Alloy plated with 50 micro-inch of gold over 70~100 microinches of nickel
Temperature Range:
Storage: -40 degrees C to +70 degrees C
Operation: -10 to +60 degree C
Noncondensing: 93%
Electrical:
Electrical Insulation Resistance: -500 mohms min at 100V DC
Dielectric Withstanding Voltage: -100V RMS at 60Hz for 1 min
Contact Resistance: 2.5 mohms max
Mechanical:
Retention: 50N (11 LBF) for 60S
Insertion/Extraction Life: 750 Cycles MIN
IDC Wire Gauge: 22-24 AWG
