Description

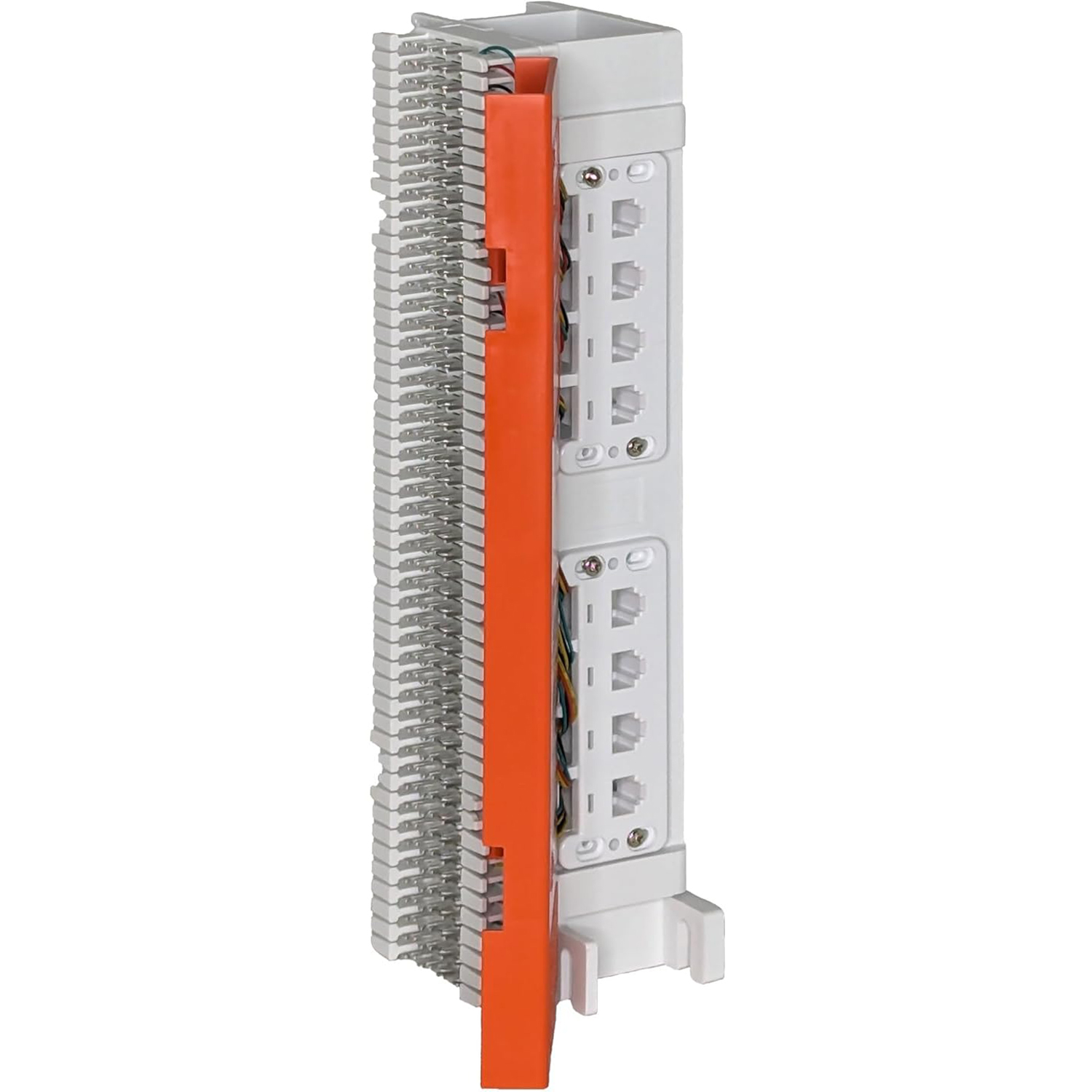

The ICC 66 Block Prewired with 8 RJ12 6P6C ports is designed to streamline telephone system installations, offering a pre-terminated solution for efficient voice connectivity. Equipped with an 89D mounting bracket for easy wall installation and a removable hinged cover for protection, this 66 block ensures a clean and organized setup. The unit features IDC contacts with 100µ” tin plating, supporting reliable connectivity through repeated terminations. Compatible with 22-24 AWG wires, the block meets TAA compliance standards, making it a dependable choice for voice applications in commercial and institutional environments.
Features
- PRE-WIRED WITH 8 RJ12 6P6C PORTS: The 66 block comes pre-wired with eight RJ12 6P6C ports, providing reliable connectivity for telephone systems and low-voltage telecom equipment. Includes an 89D mounting bracket that allows cable routing behind the block when mounted to a wall, streamlining installations for voice and PBX systems.
- CONSISTENT IDC PERFORMANCE WITH COVER: Features brass IDC contacts with 100µ” tin plating, maintaining connectivity integrity through 750 insertion cycles and supporting 22–24 AWG wires. Includes a hinged cover to keep dust out and protect against rust, helping it last longer.
- RJ12 PORT CONNECTORS: Built with phosphor bronze alloy contacts plated with 50 micro-inches of gold over 70–100 micro-inches of nickel, preventing corrosion and ensuring reliable performance through repeated connections. The thermoplastic housing provides durability for telephone and voice applications.
- UL LISTED AND COMPLIANT MATERIALS: The 66 wiring block and 89D bracket are made from UL 94V-0 flame-retardant plastic. The wiring block is designed to withstand 3.0–20.0 ft-lbs/in, ensuring dependable performance in demanding environments. Both meet U.S. government regulations, including TAA and Section 889 certification, making them suitable for government and institutional installations. They are UL Listed (E125268) and RoHS compliant, providing safety and reliability.
- ACCESSORIES (SOLD SEPARATELY): ICC Bridging clips (IC066BRCLP) and 66 punch down tool (ICACSPDT00).
Specifications
Material:
Material: High Impact Retardant Plastic, UL 94V-0
IDC: Brass with 100 microinches of Tin
Terminals: Gold over Nickel Plated Copper Alloy
Temperature Range:
Storage: -40 degrees C to 70 degrees C
Operation: -10 to 60 degree C
Noncondensing: 93%
Electrical:
Electrical Insulation Resistance: -500 mohms min at 100V DC
Dielectric Withstanding Voltage: -100V RMS at 60Hz for 1 min
Contact Resistance: 2.5 mohms max
Mechanical:
Retention: 50N (11 LBF) for 60S
Insertion/Extraction Life: 750 Cycles MIN
IDC Wire Gauge: 22-24 AWG
