Description

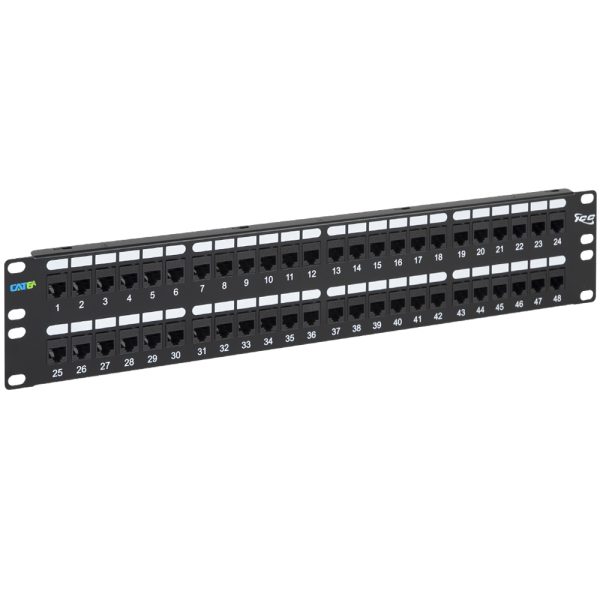

ICC’s 48-Port Category 6A Feed-through Patch Panel is designed for quick field installation. Each port has RJ-45-to-RJ-45 connections on both sides to connect patch cords. There is no need to punch down UTP wires. The patch panel fits two rack mount spaces (RMS). The patch panel is fully loaded with CAT 6A modular couplers and tested to ensure compliance with ANSI/TIA-568 Category 6A 10 Gigabit Ethernet performance standards.
Features
- Rack-mounted reinforced steel panel with pre-numbered ports
- Designed to fit all standard 19” racks and cabinets
- 2 rack mount space (RMS)
- PCB technology provides maximum performance and superior signal quality
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting
noise and unwanted signals
- Reduced rear footprint allows for greater connectivity density and provides for more port
configuration in a smaller area
- Backwards Compatible to all lower-rated category components
- ANSI/TIA-568-C and UL 1863 compliant
- Country Of Origin: Taiwan
- TAA Compliant
Specifications
Material:
Blank Patch Panel: 16 GA CRS
Surface Finish: Black Powder Coat
CAT 6A Module: ABS, UL 94V-0
Color: BK-Black
Contact: Phosphor Bronze Alloy Gold Plating over 100 microinch nickel
Gold Plating: 1.27 micron/50 micro
Electrical:
Current Rating: 1.5 amp max
Voltage Rating: 150 Volts Alternating
Dielectric Withstanding Voltage: 1000v RMS, 60 HZ
Insulation Resistance: 10 mohms
Mechanical:
Mating Force: 5 lbs max
Plug Retention in Jack: 20 lbs max
Durability: 750 cycles
