Description

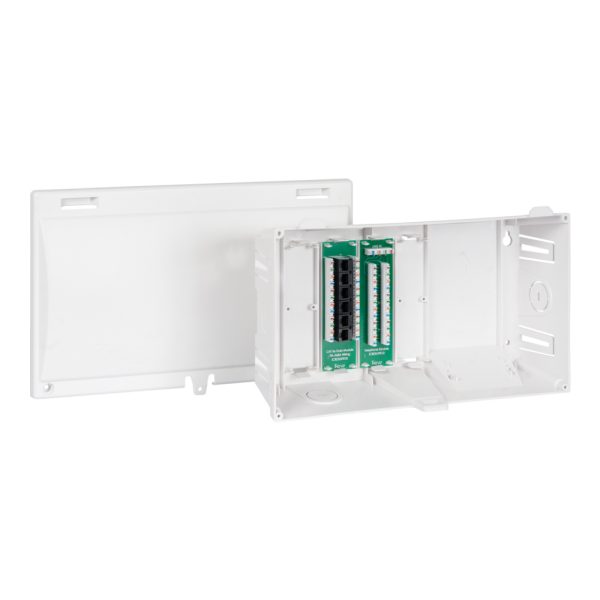

ICC’s 8″ plastic residential enclosure provides a central location for distributing voice, data, video, audio, or security services in small homes, multi-unit buildings, or retrofit installations. It supports up to four snap-in connectivity modules and one optional video module, includes knockouts for cable routing, and fits between 16″ wall studs or mounts directly to the wall. Constructed from lightweight ABS plastic, the enclosure features a depth mark for drywall alignment, a snap-on cover with screw-down and padlock options, and is compatible with ICC’s full range of modular components. The voice module includes 8 ports with built-in RJ-31X and expansion ports; data modules include 8 ports each. The enclosure meets ETL, TIA-568-C, TIA-570-B, and TIA-607 standards and is not rated for firewall installations.
Features
- INCLUDES DATA & VOICE CONNECTIVITY MODULES: Packaged with CAT5e 6-Port Data and 1×6 Bridged Telephone modules, pre-installed for quick installation. Supports connections for up to 6 Ethernet devices with PoE++ compatibility and distributes 4 phone lines to 6 locations.
- DURABLE ABS PLASTIC CONSTRUCTION: Built with 0.1-inch thick ABS plastic, making it lightweight, sturdy, and 18% stronger compared to standard enclosures. Improves Wi-Fi signal range and fits between 16″ wall studs or mounts directly to the wall with included mounting hardware. For indoor use only.
- UL LISTED, TAA COMPLIANT & SECTION 889 CERTIFIED: UL Listed (E125268) for safety and reliability in professional installations. Meets U.S. government regulations, including TAA compliance and Section 889 certification, with RoHS compliance for added environmental safety.
- SNAP-ON COVER: Comes with a wall cover to protect modules and electronics. The cover features a hook-in design for alignment and a screw-down option and padlock hasp for added security.
- COMPACT DESIGN: Measures 8″ H x 15.1″ W x 4.9″ D, perfect for small spaces like garages, basements, or tight wall areas. Ideal for compact wall-mount installations in home networks or media rooms.
Specifications
Enclosure
Material: ABS, UL 94V-0
Surface Finish: Matte
Connectivity Modules
For individual module specifications please see the “Product Documents” tab
Package Includes:
- 8” Plastic Net Media Center Box, 1 Piece
- Cover, 1 Piece
- 6-Port Telephone Module, 1 Piece
- 6-Port CAT 5e Data Module, 1 Piece
- #6-12 X 12mm Pan Head. Tapping Screw, Phillips, Zinc Plated Steel, 2 Pieces
- #10-24 X 1”, Wood Screw, 4 Pieces
- Installation Instructions, 1 Sheet
