ICC Compact Plastic Structured Media Enclosure with Cover, Small Wiring Enclosure with CAT5e 8-Port PoE++ and 1×8 Bridged Telephone, 7.5 x 6.5 x 3.5 Inch, UL Listed TAA Compliant, ICRDSMMBW1
| Enclosure Size: Mini |
|
| Combo Type: Voice / Data | |
| Packaging: Single |
Country of Origin (subject to change): Taiwan, TAA compliant
Description

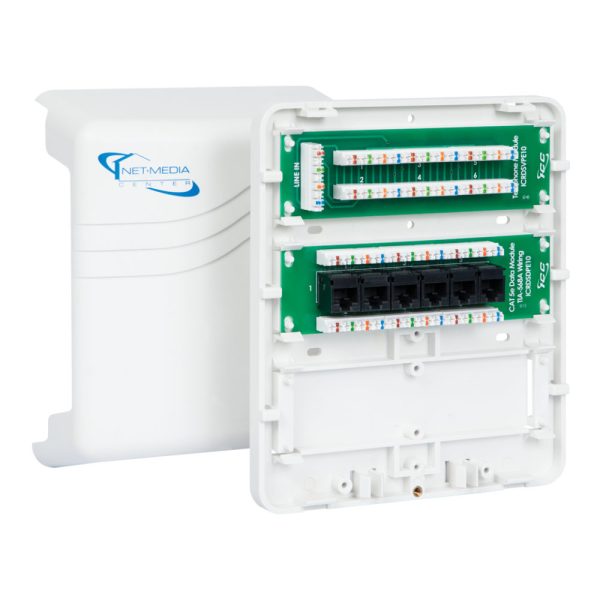

ICC’s compact plastic structured media enclosure is designed for small homes, multi-unit buildings, and retrofit installations that require a central distribution point for voice and data connections. Measuring 7.5″ H x 6.5″ W x 3.5″ D, the enclosure includes a CAT5e 8-port data module and a 1×8 bridged telephone module with RJ-31X and expansion ports, supporting PoE++ and up to 8 Ethernet devices and 4 phone lines. The enclosure is constructed from 0.1-inch thick ABS plastic and mounts directly to the wall using included hardware. Its surface-mount design features side cable access openings for flexible routing and installation in limited-space environments. The snap-on cover includes an optional screw-down point for added security. This unit is UL Listed (E125268) and complies with TIA-568-C, TIA-570-B, and TIA-607 standards. Not intended for firewall-rated applications.
