ICC Compact Plastic Structured Media Enclosure, Small Media Enclosure Box with CAT5e 8-Port PoE++, 1×8 Bridged Telephone, & 1×4 Video, 7.5 x 6.5 x 3.5 Inch, UL Listed TAA Compliant, ICRDSMMBK1
| Enclosure Size: Mini |
|
| Combo Type: Voice / Data / Video | |
| Packaging: Single |
Country of Origin (subject to change): Taiwan, TAA compliant
Description

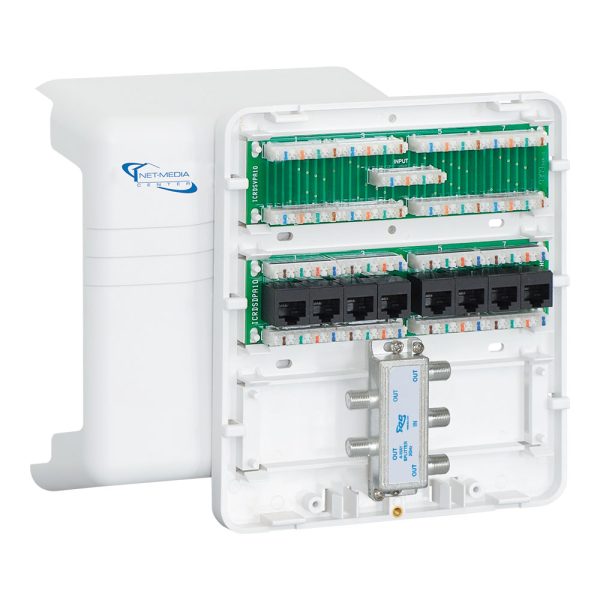

ICC’s compact plastic structured media enclosure is designed for small homes, multi-unit buildings, and retrofit installations requiring a centralized location for distributing voice, data, video, audio, or security services. Measuring 7.5″ H x 6.5″ W x 3.5″ D, the enclosure is constructed from 0.1-inch thick ABS plastic and includes a snap-on cover with optional screw-down points and side openings for cable access. It comes pre-installed with a CAT5e 8-port data module, a 1×8 bridged telephone module with RJ-31X and expansion ports, and a 1×4 video splitter supporting 2 GHz bandwidth. The enclosure mounts directly to wall surfaces using included hardware and is suitable for areas with limited space. It is UL Listed (E125268) and complies with TIA-568-C, TIA-570-B, and TIA-607 standards. Not intended for firewall-rated installations.
